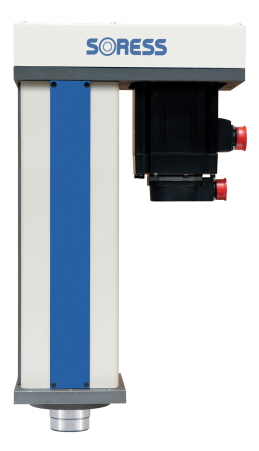

UNIT TYPE ELECTRO SERVO PRESS SORESS Unit Type SORESS
| Model | SORESS-005U | SORESS-010U | SORESS-030U | SORESS-050U | SORESS-100U | SORESS-150U | SORESS-200U | SORESS-300U |
|---|---|---|---|---|---|---|---|---|
| Ram Stroke [mm] | 0~150 | 0~200 | 0~200 | 0~200 | 0~350 | 0~350 | 0~350 | 0~350 |
| Ram Speed [mm/sec] | 0.01~230 | 0.01~230 | 0.01~230 | 0.01~250 | 0.01~160 | 0.01~120 | 0.01~90 | 0.01~70 |
| Allowable Jig Weight [kg] | 10 | 20 | 50 | 120 | 150 | 150 | 180 | 200 |
| M/CWeight [kg] | 35 | 50 | 150 | 160 | 220 | 280 | 350 | 450 |
| Power Capacity [kVA] | 1.3 | 2.2 | 6 | 9 | 12 | 12 | 12 | 12 |
| Holding Time [sec] | 0~20 | 0~20 | 0~20 | 0~10 | 0~20 | 0~20 | 0~20 | 0~10 |
| Capacity [kg·f] | 40~500 | 40~1,000 | 50~3,000 | 100~5,000 | 100~10,000 | 500~15,000 | 500~20,000 | 500~30,000 |
-
Cable Compression
-
Terminal Compression
-
Embossing
-
Staking
-
Marking
-
Bush Insertion
-
Bearing Insertion
-
Shaft Insertion
-
Forming
-
Trimming
